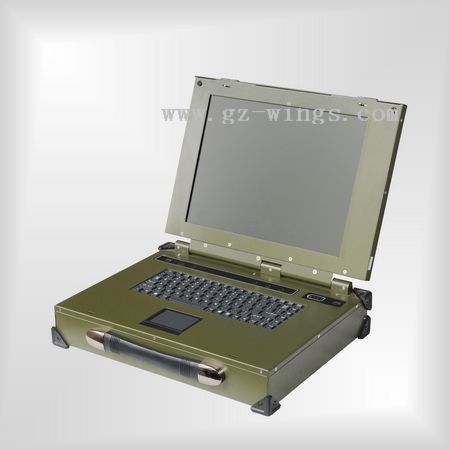

·2.5U highly portable integrated structure.
·There are 2 USB interfaces in the rear panel.
·With the design of anti-vibration and anti-collision body
·the anti-slip handle and the notebook keyboard and touch mouse board
·this product has two PCI expansion slots.
·It can be widely used in medical, military, field operations, industrial services and operations, network communications and testing, highway toll, etc.

Specifications:

Parameter
System
Driver disk shelf 3.5"HD bays, Ultra-thin notebook CD-ROM, 2.5"HDD bay(optional)
USB interface 6 USB2.0 interface, 2 USB2.0 in the front .
Extension interface CF card slot expansion interface, a 32Bit PCI bus slot
Operating system Windows, NT, UNIX, LINUX, NOVELL, DOS, etc.

Structure
Structure 2.5U Portable integrated structure
Color silver gray(Other colors are optional)
Dimension 416mm×354mm×110.5mm

Environment
Work temperature 0 ~ 40℃
Storage temperature -20~ 60℃Non-condensing)
Work Humidity 10% ~ 90% Relative Humidity,Non-condensing
Vibration 5-17Hz,0.1-inch double amplitude displacement;17-640Hz,
1.56 Peak-peak acceleration
Impact 10G Peak-peak acceleration,the duration is 15MS in the X, Y, Z axis.
EMC 3C/CE/FCC A
Recommended with ICA-945 Motherboard
CPU Onboard CPU, support Intel Core™Duo\
Intel Core2™ Duo\Intel Core™
Solo\Intel Celeron M Processor
Support 533/667MHz FSB.
Memory DDR2 SODIMM200 Socket,support DDR2-400/533/667,Maximum capacity is up to 2GB.
Chipset Intel 82945GM(GMCH)\82801GBM/FB(ICH7M/ICH7)Chipset .
Interface 1xIDE,2xSATA, 2xCOM,
1xVGA,1Xlvds,1x S-VIDEO ,
1x IR_DA ,1x PCI ,1PS/2 MS/KB,
Power Industrial 1U 220V/250W

LCD
Display 15"TFT LCD
Active area 304.1mm(H) ×228.1mm(V)
Best Resolution 1024×768 @85Hz
Colors 16.7M
Pitch 0.297mmX0.297mm
Brightness 150-250cd/
Viewing angle 150°(H),145°(V)
Dimming OSD control
Backlight MTBF 30000hrs

Ordering information:
PC-2515 15"LCD,w/2.5U height chassis,w/ICA-945 motherboard,w/CPU:Intel 478,w/RAM:1G,w/HDD:160G

If you want to know more on the details on OEM,welcome to contact us
